기본 개념
- Job을 실행항 때 함께 포함되어 사용되는 파라미터를 가진 도메인 객체
- 하나의 Job에 존재할 수 있는 여러개의 JobInstance를 구분하기 위한 용도
- 하나의 Job에 여러개의 JobInstance 있다는 것은 Job은 하나이지만 JobParameters가 여러개라는 의미이다.
- JobParameters와 JobInstance는 1:1 관계
BATCH_JOB_EXECUTION_PARAM 테이블과 매핑
- JOB_EXECUTION 과 1:M 의 관계

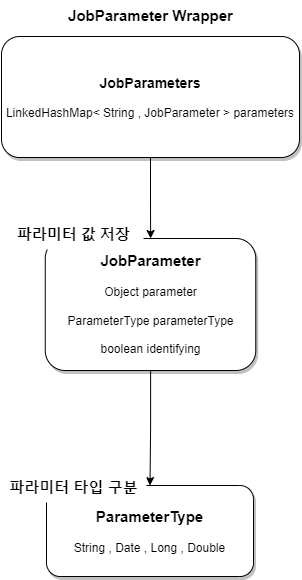

JobParameters 구조
JobParameters
- JobParameter 를 감싸고 있는 Wrapper 클래스 이다
- 맵으로 <String , JobParameter> Key , 값 으로 데이터가 저장된다
JobParameter
- JobParameters 가 내부적으로 가지고 있는 JobParameter
- JobParameter 는 Object 타입의 변수를 가지고있고 거기에 실제로 값을 저장할 수 있다
- ParameterType 이 라는 Enum 클래스가 있고 Spring Batch 에서 JobParameter 값을 저장할때 타입은 총 4개 있다
ex)
Date , Long , String 타입의 데이터를 저장한다고 가정하면
{"requestDate",new Date()} {"run.in",2L} {"name","user"}
👇테이블에는 이렇게 저장된다
BATCH_JOB_EXECUTION_PARAM
job_execution_id | type_cd | key_name | string_val | date_val | long_val | double_val | identifying |
1 | DATE | requestDate | 20220818 | Y | |||
1 | LONG | run.id | 2 | Y | |||
2 | STRING | name | user |
ParameterType
- JobParameter 에 저장되는 값을 타입은 총 4가지 이고 String , Date , Long , Double 가있다
코드로 보기
- Spring Boot 에서 자동으로 실행할 수 있지만 지금은 테스트를 위해 자동 실행이 아닌 수동으로 jobLauncher 를 만들어서 진행 했습니다
- jobParameter 를 생성해야하기 때문에 이렇게 진행
application.yml
spring:
profiles:
active: local
---
spring:
config:
activate:
on-profile: local
datasource:
hikari:
jdbc-url: jdbc:h2:mem:testdb;DB_CLOSE_DELAY=-1;DB_CLOSE_ON_EXIT=FALSE
username: sa
password:
driver-class-name: org.h2.Driver
---
spring:
config:
activate:
on-profile: mariadb
datasource:
url: jdbc:mariadb://localhost:3306/batch
username: batch
password: batch
driver-class-name: org.mariadb.jdbc.Driver
batch:
jdbc:
initialize-schema: always
job:
enabled: false
- job: enabled: false 를 통해서 자동 실행을 막았습니다.
JobConfiguration
<기본적인 step 2개를 만들어줌>
package io.batch;
import lombok.RequiredArgsConstructor;
import org.springframework.batch.core.Job;
import org.springframework.batch.core.Step;
import org.springframework.batch.core.StepContribution;
import org.springframework.batch.core.configuration.annotation.JobBuilderFactory;
import org.springframework.batch.core.configuration.annotation.StepBuilderFactory;
import org.springframework.batch.core.scope.context.ChunkContext;
import org.springframework.batch.core.step.tasklet.Tasklet;
import org.springframework.batch.repeat.RepeatStatus;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
@Configuration
@RequiredArgsConstructor
public class DBJobConfiguration {
private final JobBuilderFactory jobBuilderFactory;
private final StepBuilderFactory stepBuilderFactory;
@Bean
public Job job(){
return jobBuilderFactory.get("job")
.start(step1())
.next(step2())
.build();//build를 해주면 실제 Job 생성
}
@Bean
public Step step1() {
return stepBuilderFactory.get("step1")
.tasklet(new Tasklet() {
@Override
public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
System.out.println("step1");
return RepeatStatus.FINISHED;
}
})
.build();
}
@Bean
public Step step2() {
return stepBuilderFactory.get("step2")
.tasklet(new Tasklet() {
@Override
public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
System.out.println("step2");
return RepeatStatus.FINISHED;
}
})
.build();
}
}
⭐JobParameterTest
<JobParameter 를 Test 하기위한 클래스>
❗어플리케이션 실행시 주입 하는 방법
package io.batch;
import org.springframework.batch.core.Job;
import org.springframework.batch.core.JobParameters;
import org.springframework.batch.core.JobParametersBuilder;
import org.springframework.batch.core.launch.JobLauncher;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.boot.ApplicationArguments;
import org.springframework.boot.ApplicationRunner;
import org.springframework.stereotype.Component;
import java.util.Date;
@Component
public class JobParameterTest implements ApplicationRunner {
@Autowired
private JobLauncher jobLauncher;
@Autowired
private Job job;
@Override
public void run(ApplicationArguments args) throws Exception {
JobParameters jobParameters = new JobParametersBuilder()
.addString("name","user1") //String Type
.addLong("seq",2L) //Long Type
.addDate("date",new Date()) //Date Type
.addDouble("age",16.5) //Double Type
.toJobParameters();
jobLauncher.run(job, jobParameters);
}
}
- 4가지 Type 타입의 파라미터를 던지고 있다

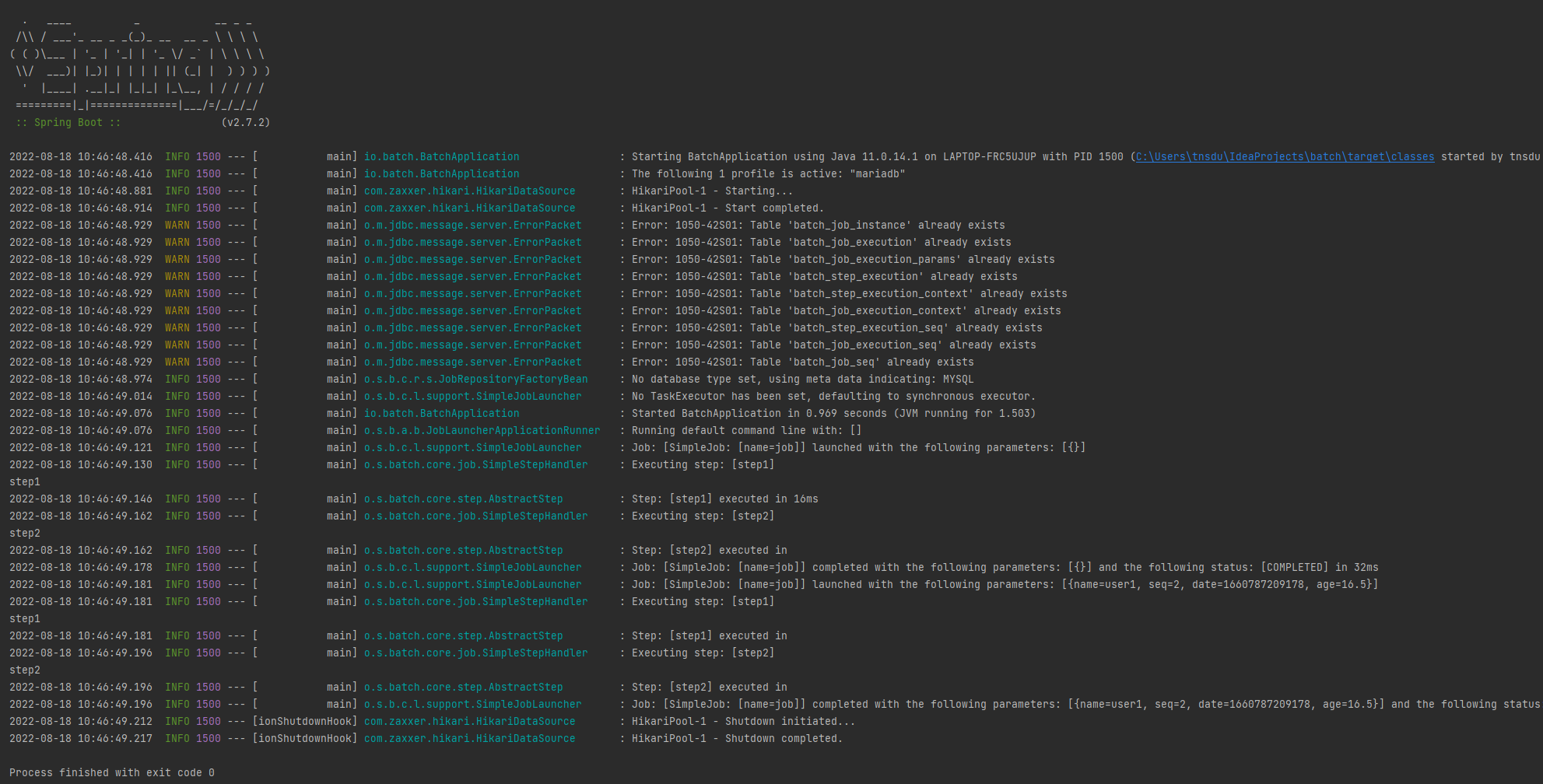

실행성공

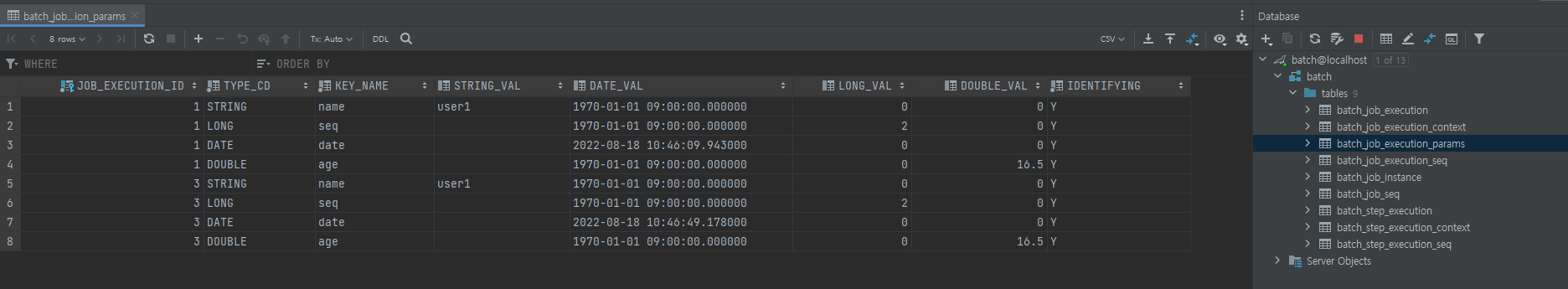

테이블 확인해보기
- DATE 에 아무런 값을 안주면 1970-01-01 09:00:00.000000 란 값이 주어진다
이제 이렇게 저정한 JobParameter 를 어디서 참조하고 있는지 알아보자

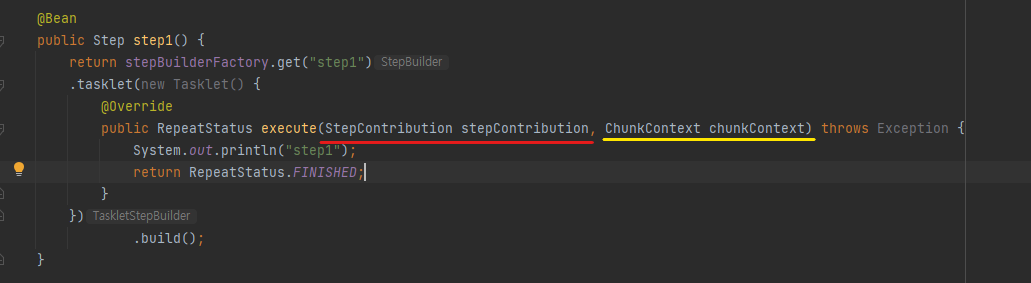

step 단계에서 참조할 수 있는고
stepContribution 과 chunkContext 에서 참조 할 수 있다

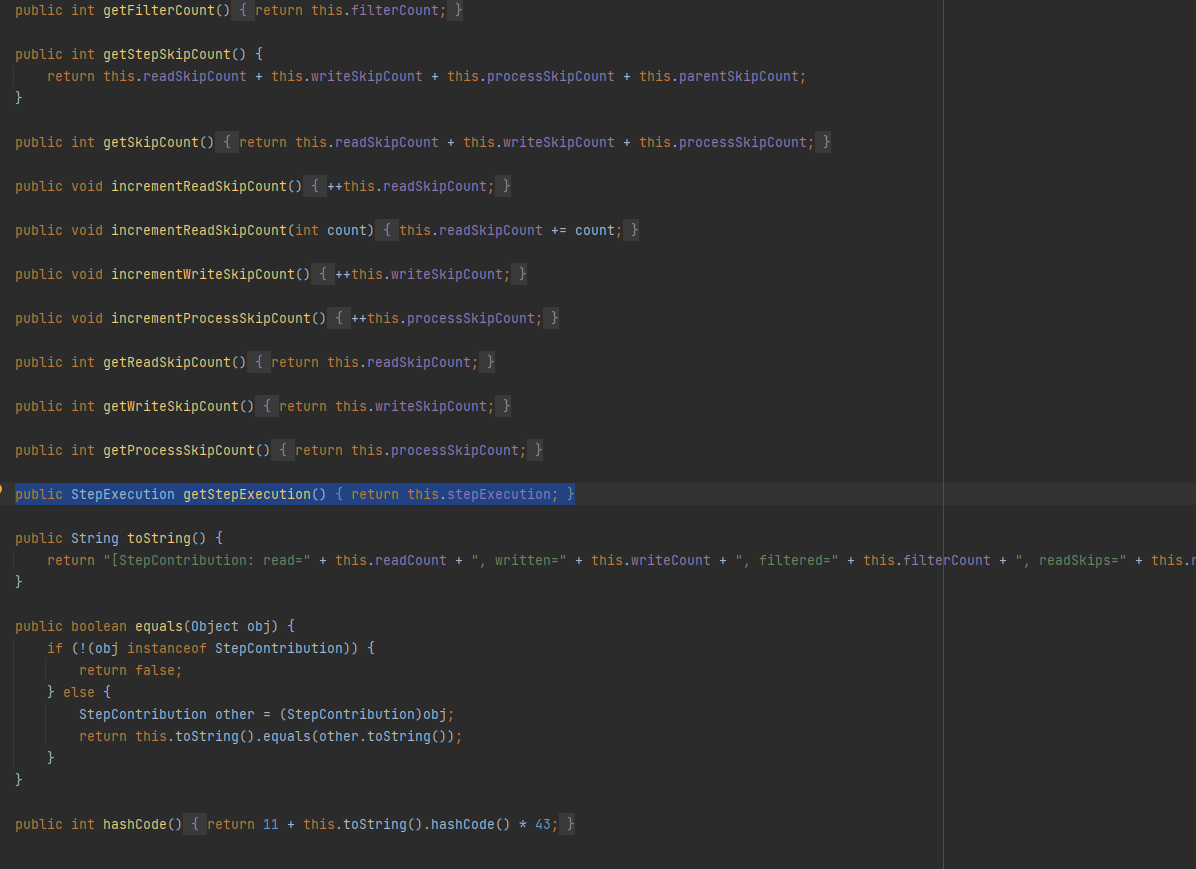

stepContribution 안으로 들어가 보면

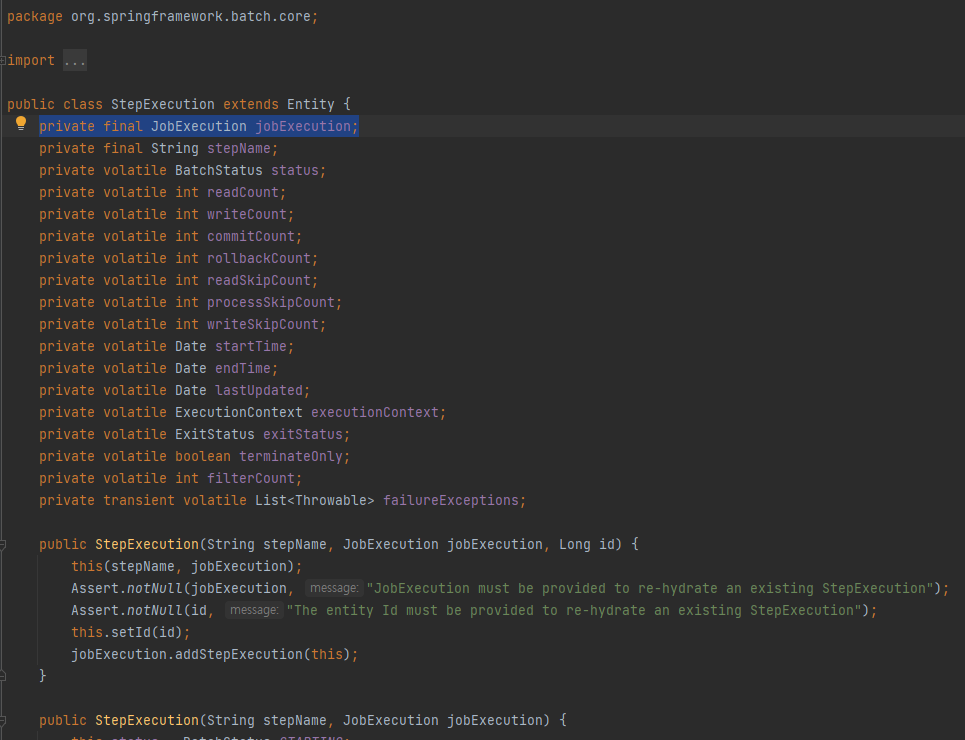

StepExecution 이 있고 그리고 StepExecution 안으로 들어가보면

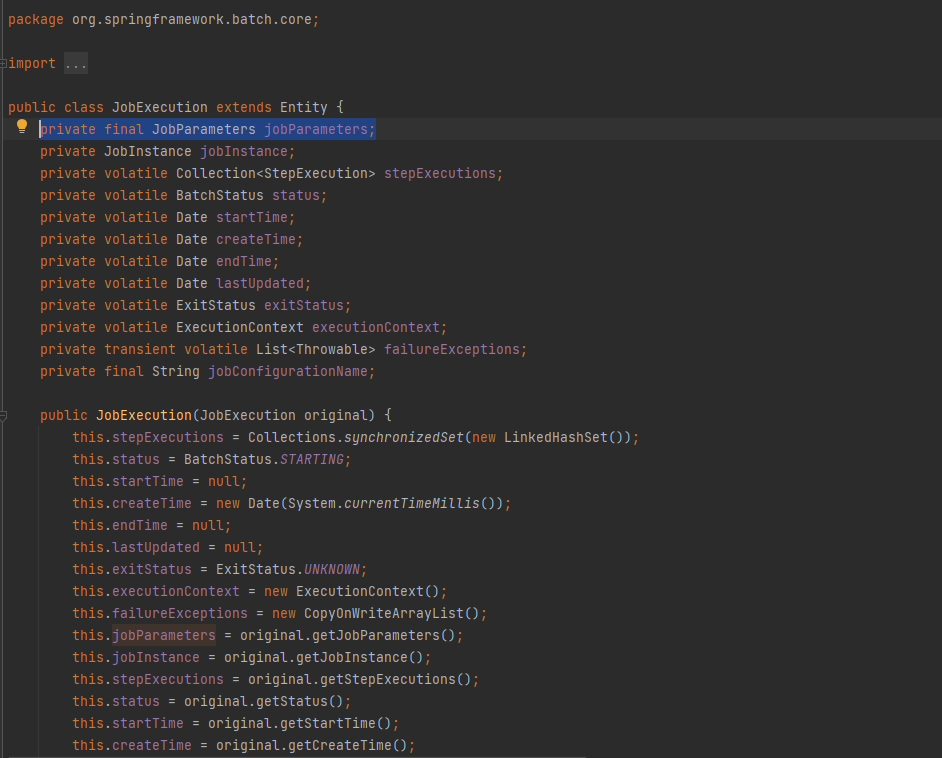

JobExecution 이 있다 그리고 다시한번 JobExecution 안으로 들어가보면
**JobParameters 가 있는걸 볼 수 있다**
- **chunkContext 도 마찬가지다 chunkContext 안에 StepContext 가 있고 그 안에 StepExecution 이 있고 그 안에 JobExecution 이 있다 그리고 그 안에 JobParameters 가 있는걸 확인할 수 있다**
stepContribution 과 chunkContext 둘다 참조가 가능하지만 약간의 차이가 있는데 이건 구현을 해보면서 알아보도록 하겠습니다
❗코드로 생성하는 방법
stepContribution 을 이용한 방식
@Bean
public Step step1() {
return stepBuilderFactory.get("step1")
.tasklet(new Tasklet() {
@Override
public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
JobParameters jobParameters = stepContribution.getStepExecution().getJobExecution().getJobParameters();
jobParameters.getString("name");
jobParameters.getLong("seq");
jobParameters.getDate("date");
jobParameters.getDouble("age");
System.out.println("step1");
return RepeatStatus.FINISHED;
}
})
.build();
}
- stepContribution 방식은 보면 jobParameters 타입의 객체가 반환 된다
chunkContext 을 이용한 방식
@Bean
public Step step1() {
return stepBuilderFactory.get("step1")
.tasklet(new Tasklet() {
@Override
public RepeatStatus execute(StepContribution stepContribution, ChunkContext chunkContext) throws Exception {
Map<String, Object> jobParameters1 = chunkContext.getStepContext().getJobParameters();
System.out.println("step1");
return RepeatStatus.FINISHED;
}
})
.build();
}
- chunkContext 방식은 보면 Map 의 형태로 반환 된다
- 반환 받는 값은 stepContribution 과 동일하다
❗어플리케이션 실행시 주입 하는 방법 과 ❗코드로 생성하는 방법 2가지를 만들어 보았습니다
